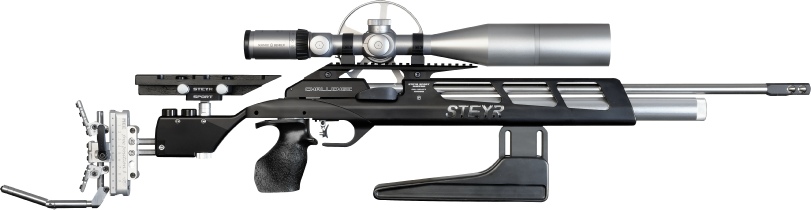

- New:Match Butt Stock
- New: Challenge Chassis
- New Fore arm with better adjustment Vibration-free system
- Maintenance-free STEYR stabilizer eliminates recoil
- Revolutionary lateral stock adjustment
- Multidirectional adjustment of the grip
- Single or two stage ball bearing trigger adjusted within seconds
- Simple adjustment of the muzzle velocity without dismantling the rifle
- Dry fire training shots without any necessary tools
- Totally nickel-plated barrel and anodised aluminium parts against corrosion
Specifications
total length: 1170mm
total height: 200mm
length of barrel : 550m
calibre: 4,5 mm (.177)
total weight: ca. 4.750g
trigger: mechanical
trigger pull: 50 - 250 g
energy: 7,5 / 16 / 24 Joule
- Bounce-free system due to compressed air propellant
- Safety first: cannot be fired unless action is completely closed
- Single or two stage ball bearing trigger adjusted within seconds
- Totally nickel-plated barrel and anodized aluminium parts against corrosion
- In hunting-black against reflection
- Available calibres .177/.20/.22
Specifications
total length: 1.030mm
total height: 170 - 180 mm
calibre / length of barrel:
- 4,5 mm (.177) / 550 mm (7,5 / 16 / 24 Joule)
- 5,0 mm (.20) / 550 mm (16 / 24 / 35 Joule)
- 5,5 mm (.22) / 550 mm (16 / 24 / 40 Joule)
total weight: ca. 3490 g
trigger: mechanical
trigger pull: 50 - 250 g

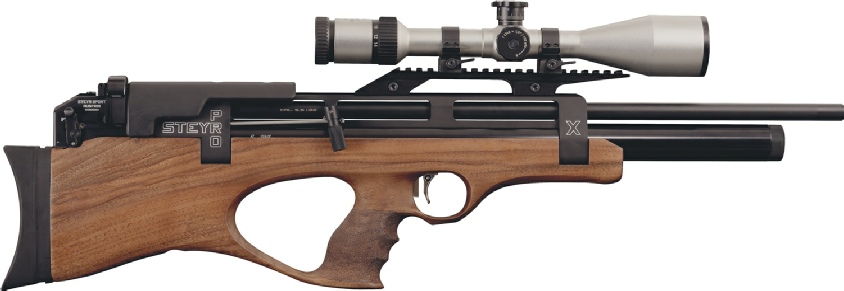

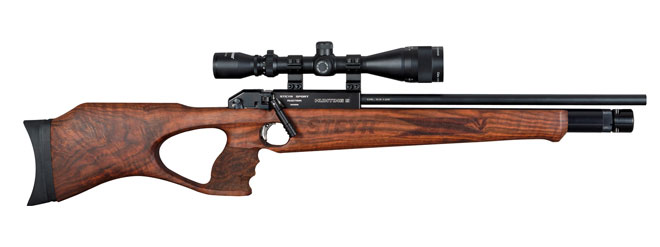

- The automatic repeating bolt action allows 5 quick shots directly out of the magazine
- Fast rate of fire due to proven STEYR piston system
- Controlled firing due to low mass movement
- Patent-pending magazine sealing
- Bounce free system
- Maximum safety: No projectile/diabolo remains in the weapon after the magazine is removed
- Additional external safety
- 520 mm barrel for maximum performance and longer compressed air cylinder for higher capacity
- Ergonomic thumb-hole stock made from nut wood
- Several options: Depending upon calibre (.177/.22) available with an energy up to 40 joule
Specifications
total length: 890 mm
total height: 160 mm
calibre / length of barrel:
- 4,5 mm (.177) / 520 mm (7,5 / 16 / 24 Joule)
- 5,5 mm (.22) / 520 mm (16 / 24 / 40 Joule)
total weight: ca. 2990 g
trigger: mechanical
trigger pull: 250 - 600 g

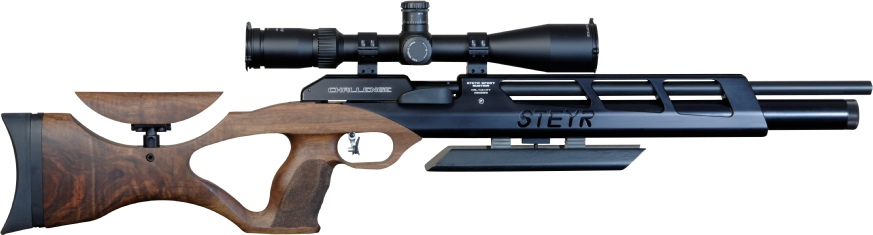

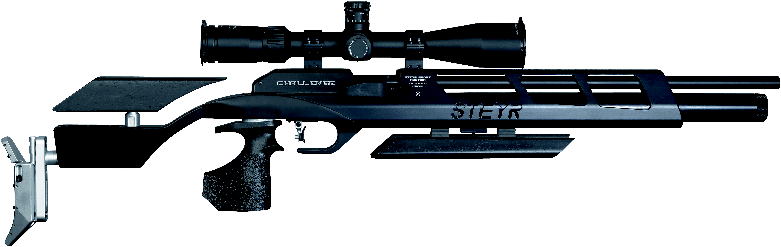

This new model Field Target is on the Challenge Match chassis and has the Match butt stock.
The new butt stock allows full adjustment to suit any individuals specifications.

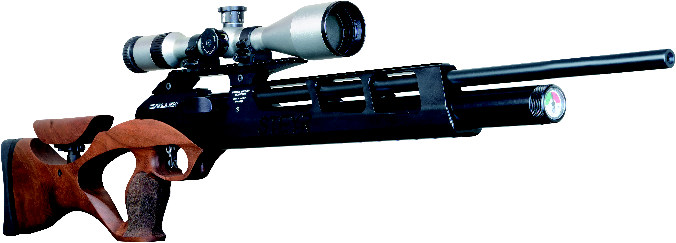

STEYR HUNTING 5 Scout
5,12 inch / 13cm shorter Barrel!
- Ilaflon coated barrel 450 mm
- STEYR Stabilizer
- Ball bearing trigger
- Simple adjustment of muzzle velocity |Infinitely adjustable grip
- |Lateral stock adjustment
- Forend stock adjustable in height, length and angle
- Compressed air cylinder with pressure gauge
Specifications
total length: 910 mm
total height: 175 mm
length of barrel : 450 mm
calibre: 4,5 mm (.177)
total weight: ca. 3.730 g
trigger: mechanical
trigger pull: 50 - 250 g
energy: 7,5 / 16 / 24 Joule

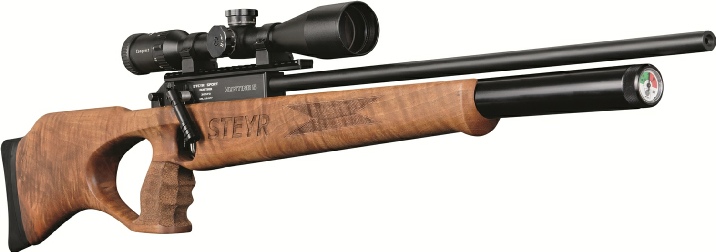

- Ilaflon coated barrel 450 mm
- STEYR stabilizer
- All bearing trigger
- Simple adjustment of muzzle velocity
- High quality walnut stock with adjustable cheek piece and butt Plate adjustable in height
- Compressed air cylinder with pressure gauge
Specifications
total length: 930 mm
total height: 175 mm
calibre / length of barrel:
- 4,5 mm (.177) / 450 mm (7,5 / 16 / 24 Joule)
total weight: ca. 3.640g
trigger: mechanical
trigger pull: 50 - 250 g

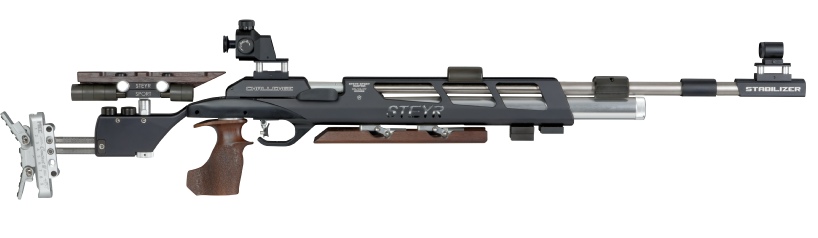

- Patented STEYR Stabilizer provides absolutely no recoil while shooting
- Individually adjustable stock for the needs of each shooter
- Fore-end adjustable in lenght, height and swivel-mounted
- No movement at the trigger take up
- Redesigned loading area for better access
- External velocity adjustment
- CONNECT: for easier transportation!
Specifications
total length: 1.140 mm
length of sight: 750 - 890 mm
length of barrel: 450 mm
diameter of barrel: 16 mm
calibre: 4,5 mm (.177)
total weight: ca. 4.420 g
trigger: mechanical
trigger pull: 50 - 250 g

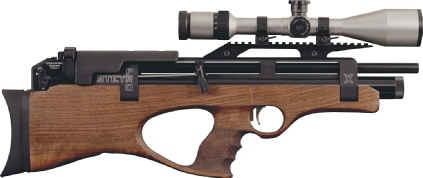

- The automatic repeating bolt action allows 5 quick shots directly out of the magazine
- Fast rate of fire due to proven STEYR piston system
- Controlled firing due to low mass movement
- Patent-pending magazine sealing
- Bounce free system
- Maximum safety: No projectile/diabolo remains in the weapon after the magazine is removed
- Additional external safety
- 650 mm barrel for maximum performance and longer compressed air cylinder for higher capacity
- Ergonomic thumb-hole stock made from nut wood
- Several options: Depending upon calibre (.177/.22) available with an energy up to 40 joule
Specifications
total length: 1.020 mm
total height: 160 mm
calibre / length of barrel:
- 4,5 mm (.177) / 650 mm (7,5 / 16 / 24 Joule)
- 5,0 mm (.20) / 650 mm (16 / 24 / 35 Joule)
- 5,5 mm (.22) / 650 mm (16 / 24 / 40 Joule)
total weight: ca. 3.300 g
trigger: mechanical
trigger pull: 250 - 600 g
- 10 quick shots due to automatic repeating system
- Bounce free system
- Maximum safety: The pellet is shot directly out of the magazine. No pellet remains in the barrel when magazine removed.
- Available in 7.5/16/24 joule (calibre .177) and 16/24/40 joule (calibre .22)
- Delivered with long compressed air cylinder and one 10-shot drum magazine in a compact rifle case.
Total length 760 mm
Total height 200 mm
Barrel length 650 mm
Total weight 3500 g
- Total length just 630 mm!
- 520 mm barrel length
- Optional with sound absorbing barrel sleeve.
- Available in 7.5/16/24 joule (calibre .177) and 16/24/40 joule (calibre .22)
- Delivered with short compressed air cylinder and one 10-shot drum magazine in a compact rifle case.
Total length 630 mm
Total height 200 mm
Barrel length 520 mm
Total weight 3200 g

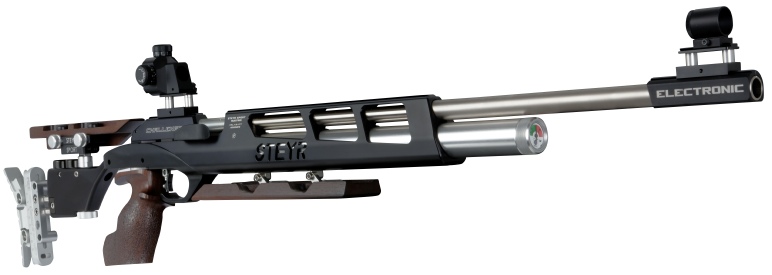

- Patented STEYR Stabilizer provides absolutely no recoil while shooting
- Minimal movement during the shot release (E)
- Individually adjustable stock for the needs of each shooter
- Fore-end adjustable in length, height and swivel-mounted
- Fine adjustable trigger from 15 g (E)
- No movement at the trigger take up
- No movement of the trigger at the point of release (E)
- Redesigned loading area for better access
- External velocity adjustment
- CONNECT: for easier transportation!
Specifications
total length: 1.140 mm
length of sight: 750 - 890 mm
length of barrel: 450 mm
diameter of barrel: 16 mm
calibre: 4,5 mm (.177)
total weight: ca. 4.420 g
trigger: electronic
trigger pull: 15 - 250 g
